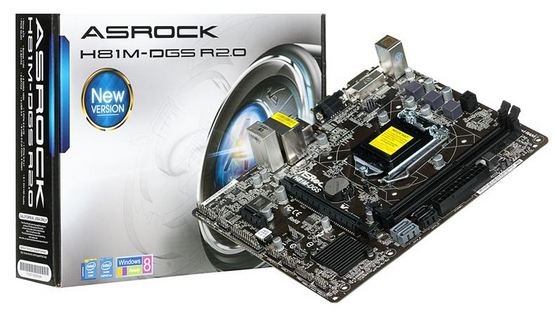

Main Asrock H81M-DGS

Hãng sản xuất

Asrock

Chủng loại

H81M-DGS R2.0

CPU hỗ trợ

• - Supports New 4^th and 4^th Generation Intel^® Core™ i7/i5/i3/Xeon^®/Pentium^®/Celeron^® Processors (Socket 1150)
- Supports Intel^® Turbo Boost 2.0 Technology

Chipset

Intel® H81

Bộ nhớ trong

- Dual Channel DDR3/DD3L Memory Technology
- 2 x DDR3/DD3L DIMM Slots
- Supports DDR3/DD3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel^® Extreme Memory Profile (XMP) 1.3 / 1.2

VGA onboard

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

- Pixel Shader 5.0, DirectX 11.1

- Max. shared memory 1792MB

- Two graphics output options: support DVI-D and D-Sub ports by independent display controllers

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports HDCP with DVI-D Port

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

Âm thanh

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Khe mở rộng

- 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x1 Slot

Chuẩn lưu trữ

- 2 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug

- 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug

Cổng giao tiếp trước và sau

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 4 x USB 2.0 Ports

- 2 x USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Công nghệ tích hợp

- ASRock APP Shop
- ASRock A-Tuning
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI

Kích thước

Micro ATX Form Factor

Phụ kiện đi kèm

Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
