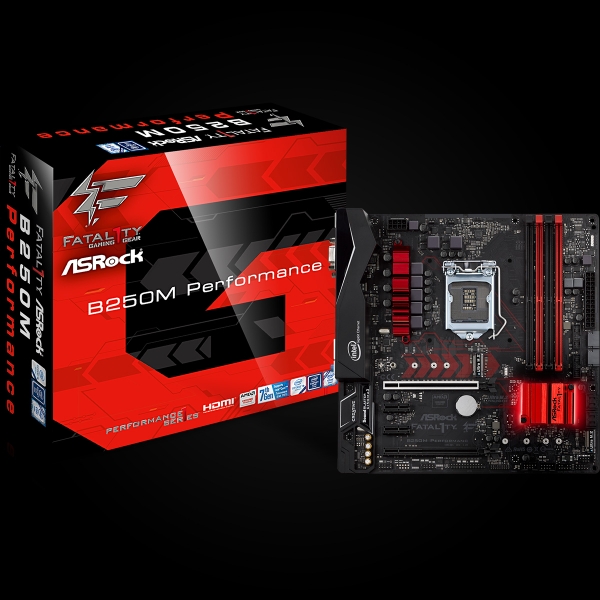

Mainboard Asrock B250M Performance

CPU

- Supports 7^th and 6^th Generation Intel^® Core™ i7/i5/i3/Pentium^®/Celeron^® Processors (Socket 1151)
- Digi Power design
- 6 Power Phase design
- Supports Intel^® Turbo Boost 2.0 Technology

Chipset

- Intel^® B250

Bộ nhớ trong (RAM)


- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2400/2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Graphics

- Supports Intel^® HD Graphics Built-in Visuals : Intel^®Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics



Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*

LAN

- Gigabit LAN 10/100/1000 Mb/s

Khe cắm mở rộng

- 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)*
- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

Lưu trữ

- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*

Kết nối vào / ra

- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Phụ kiện

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets

Kích thước

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Hệ điều hành hỗ trợ

- Microsoft^® Windows^® 10 64-bit (For 7^th Gen Intel^® CPU)
- Microsoft^® Windows^® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6^th Gen Intel^® CPU)*
